Paneltronics-CW29834
Paneltronics-CW29834 Paneltronics-CW29834

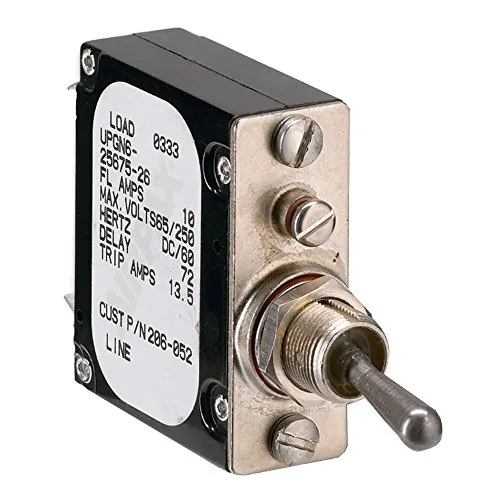

Paneltronics 50 Amp A-Frame Magnetic Waterproof Breaker
  • Cost: $31.81
  • Quantity: 1
  • Free Shipping
  • Views:
  • Sold and Shipped By: eforgo

Paneltronics Waterproof "A" Frame Magnetic Circuit Breakers

This circuit breaker is designed for use in electrical distribution panels, specifically tailored for boats and yachts. It meets all necessary safety standards, ensuring reliable operation in marine environments.

  • Branch AC or DC circuit breaker for electrical distribution panels.
  • Complies with American Boat and Yacht Council (ABYC) Standards for non-ignition protected circuit breakers.
  • UL Recognized (UL 1077) for usage in the U.S.A., and CSA Certified for Canada.
  • Trip free mechanism for added safety.
  • Manual reset feature for easy operation.

Specifications

  • Handle Color: Metal with Silicone rubber seal.
  • Maximum Amperage: 50 Amps.
  • Maximum Voltage/AIC: 32 VDC / 2,500 Amps without Back-up Fuse.
  • Rated for 10,000 switch cycles at rated current and voltage.
  • Electrical Hardware: Screw 10-32 x 3/8" pan combo head.
  • Mounting Hardware: Hex nut 1/2-32 and lockwasher 1/2" internal tooth (both supplied).
  • Optional Boot: Black silicone rubber available.
  • Meets ABYC standards for safety and reliability.
  • Manual reset function for quick troubleshooting.
  • Designed for both AC and DC applications.
  • Durable construction with waterproof features.
  • High performance with 10,000 rated switch cycles.
