Lenco Extreme Duty Actuator - 12V with 2-1/4" Stroke

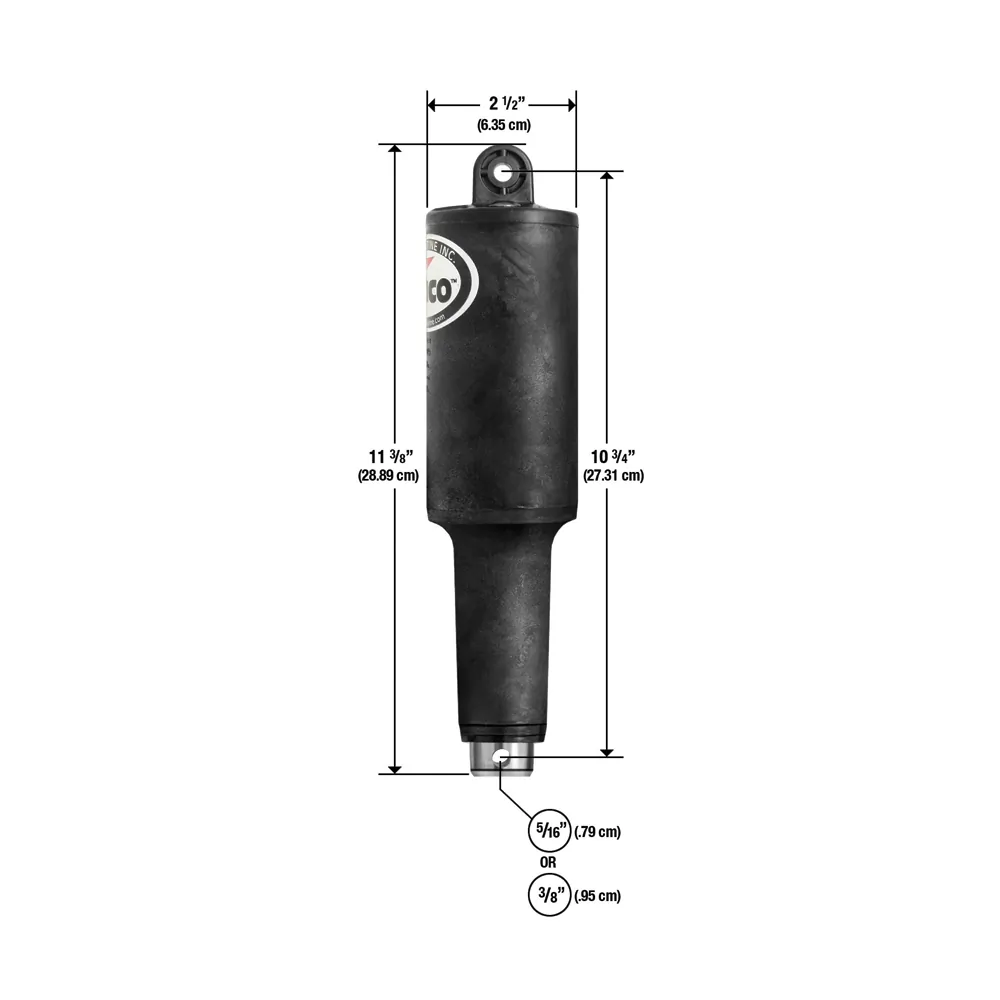

The Lenco Extreme Duty Actuator is engineered for optimal performance, particularly with HD, XD, High Performance, and Super Strong tabs. It features a stroke length of 2.25 inches and an overall length of 11^3/8 inches. These instant response electric actuators are constructed from high impact glass fiber-reinforced nylon, providing resistance to ultraviolet light and a robust 316 stainless steel tube.

Specifications:

• Anti Extrusion Ring (AXR) seal stabilization system for enhanced durability.
• Improved structural integrity with a stronger top cap and mounting clevis.
• Pressure-tight torx screws for secure assembly.
• Integrated wiper seal located at the actuator base.
• Molded-in brass thrust bearing design.
• Thicker motor housing for added strength.
• Advanced O-Ring design ensuring a reliable seal.
• Over-molded cable that offers a tighter, stronger seal.
• Upper mounting bracket equipped with a gland seal.
