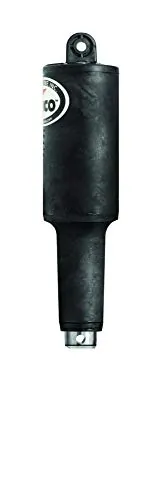

Lenco 101XD Actuator - 12 Volt with 2-1/4" Stroke

The Lenco 101XD Actuator is designed for heavy-duty applications, specifically with HD, XD, High Performance, and Super Strong tabs. Featuring a 2.25" stroke, its overall length from tip to tip is 11^3/8 inches. These instant-response electric actuators are crafted from high-impact glass fiber-filled, ultraviolet-resistant nylon, and reinforced with 316 super buff stainless steel tubing.

Specifications:

• Newly implemented Anti Extrusion Ring (AXR) seal stabilization system.
• Enhanced top cap and mounting clevis design for durability.
• Improved pressure-tight Torx screws for secure fastening.
• Integrated wiper seal at actuator base to keep debris out.
• Molded-in brass thrust bearing design for improved performance.
• Thicker and stronger motor housing wall for reliable operation.
• Advanced O-Ring design for a more consistent seal.
• Over-molded cable providing stronger and tighter waterproof seal.
• Upper mounting bracket with gland seal included.
