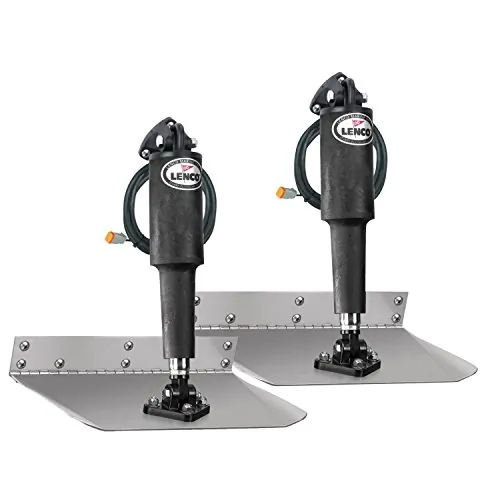

9" x 12" Standard Trim Tab Kit - 12V (No Switch Included)

The Lenco Electric Standard Mount Trim Tab Kit enhances your boating experience by providing a smoother, drier, and faster ride, ensuring safety across various boat sizes from small skiffs to large yachts. Utilizing a robust ballscrew design, these electric actuators deliver three times more power with immediate response, making them more efficient and user-friendly compared to traditional hydraulic systems.

Featuring fully submersible fast response electric actuators with waterproof Deutsch connections, this kit is designed to withstand the rigors of the marine environment. The 12-gauge stainless steel trim tab blades come equipped with a 5/8" flared trailing edge and a 1/8" diameter hinge pin. The kit is comprehensive, including standard actuators and all necessary stainless steel mounting hardware.

Kit Includes:

• 2 x 12-gauge stainless steel trim tab blades
• 2 x #15054-001 actuators (with 6' leads and Deutsch plugs)
• 2 x #30133-103 20' actuator extension wiring harnesses
• 2 x #15085-001 upper mounting brackets with gland seal
• 2 x #50014-001 lower mounting brackets
• 1 x Lenco owner's / installation manual
• All required stainless steel mounting hardware

Specifications:

• Suggested Boat Length: 16' to 25'
• Tab Length: 9"
• Tab Width: 12"
• Hinge Height: 2"
• Minimum Transom Height: 14"
• Blade Material: 12 Gauge Stainless Steel
• Finish: Smooth
• Switch Kit: Sold Separately
• Class: Fuel Efficient
• Compliance: CE Certified
• Compatibility: Any Boat
• Actuator Voltage: 12 volts
